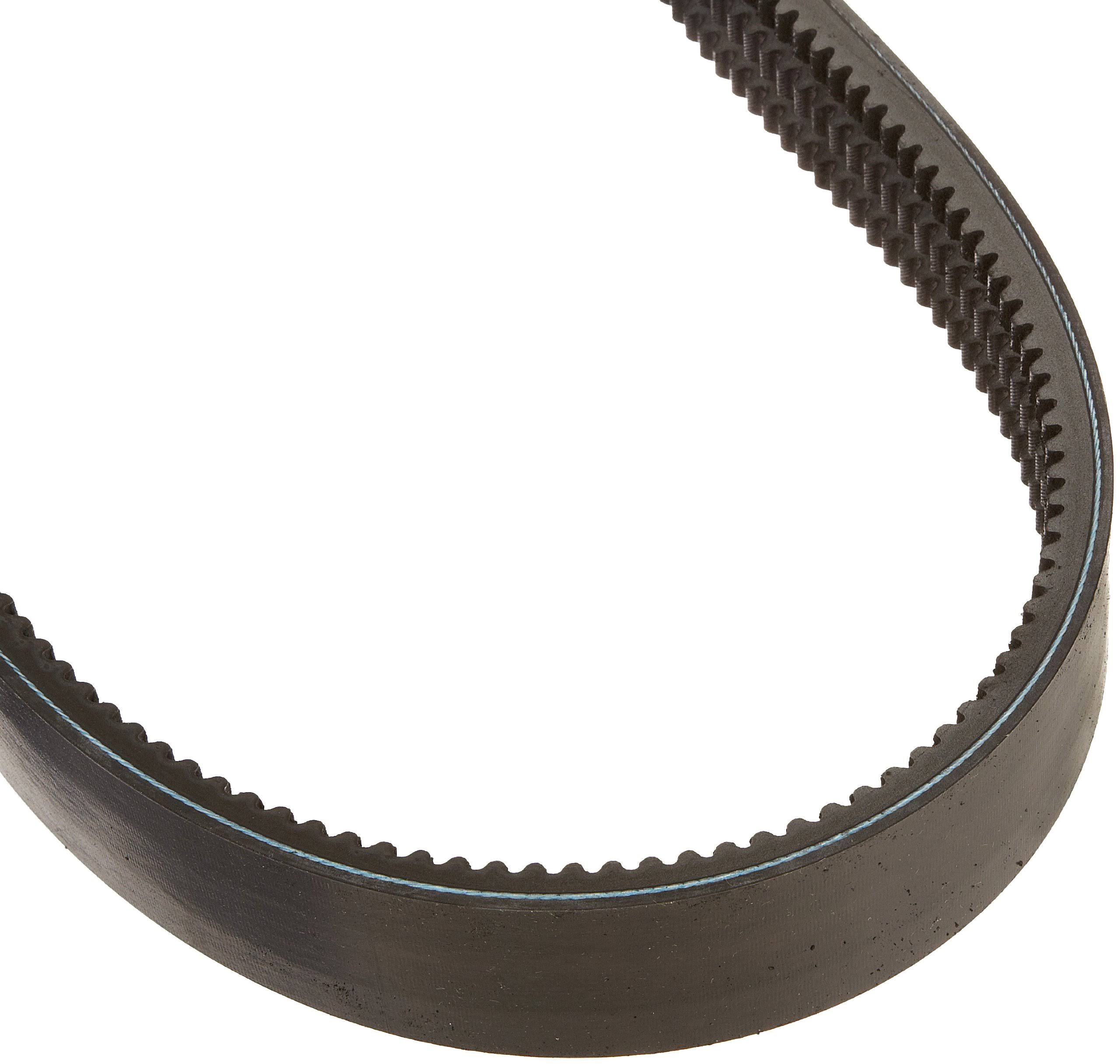

Gates 3/5VX900 Super HC PowerBand V-Belt - 9389-3090 IT_LY1OH208

$188.10  $65.17




Product details:

Bearings & Power Transmission > Belts > Industrial V-Belts > Banded Narrow Wrapped Belts | Gates Powerband - RMA - Narrow Section | Descriptions | Quad-Power 4 has been developed to replace traditional V-belts on applications where space, weight savings and temperature resistance are required. | Extensive testing has shown that Gates Quad-Power 4 V-belts offer up to 50% higher offer ratings than the wrapped Super HC. | The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130C. | Dimensions | Section: 5VX | Width: 17 mm | Height: 13 mm | Effective Length: 900 (1/10-inch) | Number of Ribs: 3 | Construction | Notch depth is in proportion to the cross-section to ensure perfect stability | Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action | Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing | Fibre-loaded EPDM compound withstands high heat, ozone, sunlight and provides better cord support | Double Flex-Weave textile backing protects the belt against wear especially when back idlers are used | Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage | Static conductive - ISO 1813 and RMA IP3-3 | Advantages | No re-tensioning required | Reduce wrapped belt drive width up to 50% | Increase efficiency up to 3% offer wrapped belts | Use smaller diameter pulleys than wrapped belts | Moulded notches reduce and evenly distributed thermal and bending stresses | Reduce drive maintenance | Match free system: all sizes meet Gates UNISET & V80 tolerances, can be installed without matching | Back idlers can be used | Temperature Range | Range: -50C to +130C
